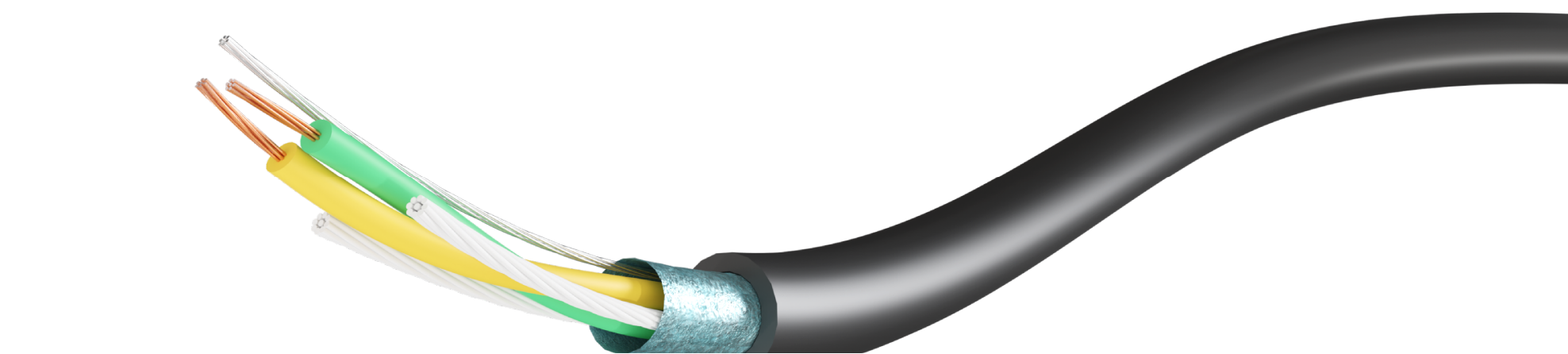

The SAE J1939/11 CAN-Bus cable is specifically designed to support high-speed communication in heavy-duty vehicles, industrial automation, and agricultural equipment.
Type: data cable
Core: bare copper
Insulation: CASFOAM® irradiation cross-linked material
Drain wire: bare or tin-plated copper
Wrapping: aluminium/mylar
Jacket: modified irradiation cross-linked material
Production
Range width: twisted pair of 0.5mm², 0.8mm², 18AWG, 20AWG
Options: Please consult us for any special requirements
Application
Heavy-duty vehicles: suitable for harsh environmentsChemical behaviors: very good resistance to acid, base, mineral oil, and fuel
Mechanical behaviors: excellent cut-through resistance and excellent abrasion resistance
Thermal characteristics
Operating temperature: -55°C to +125°C
Electrical characteristics
Operating Voltage: 300 V
Impedance: 120Ω±10%
SAE J1939/11
